In today’s complex product development environments, data visualization is more than just a nice-to-have—it’s a necessity. When working with intricate systems, countless components, and interdependencies, the use of visual representations is crucial for teams to transform raw data into insights and communicate them clearly through the organization. Visuals make complexity understandable, foster collaboration and enable faster, more informed decision-making. However, making good visualizations of product architectures and design relationships is easier said than done. In this blog I want to outline my TOP 5 methods that are available in TopTeam Requirements.
System Breakdown Structures
Why? Breakdown structures are a vital tool in systems engineering, whether functional or physical. TopTeam offers the creation of an automatic breakdown structure that can include a variety of different object types. They are instantly up to date and consistent with the entire database and can be filtered on relevance. Users can dynamically navigate from high-level concepts to detailed elements, reducing ambiguity and improving clarity across the development lifecycle.

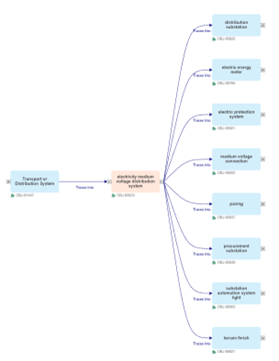

Component Traceability
Why? Without traceability it will be complex and time consuming to address compliance, quality assurance, and change management. By visualizing the trace relationships between record items in TopTeam users can:
- track how each component relates to requirements, tests, and design artifacts.
- identify gaps or inconsistencies in coverage.
- simplify audits and impact analysis when changes occur.
Instead of sifting through spreadsheets, a traceability map provides an intuitive way to see connections and dependencies, ensuring nothing falls through the cracks.

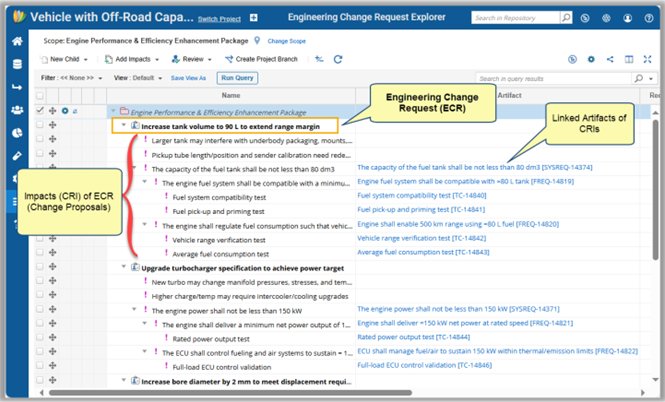

Engineering Change Requests
Why? There is no such thing as a perfect design. When requirements are defined and linked to (sub)systems for further detailing, it is inevitable that requests for modifications, changes or alternatives will arise. Most requirement management tools typically focus on the downstream hierarchy, however TopTeam has implemented an advanced Engineering Change Requests functionality which is built on top of the traceability database.
When Change requests are submitted, users can quickly identify and collect individual records that are impacted. This creates small independent working environments with a focus on the change task. Once reviewed these changes are merged back into the main branch.

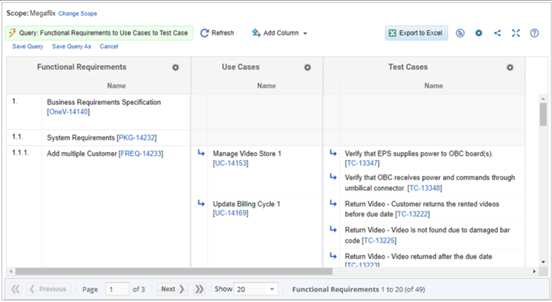

Traceability Coverage
Why? Exhaustive lists of stakeholders needs, use cases, system requirements, components, norms are a fact in most product development environments. Keeping track of all of their status and impact within the system can easily overwhelm users.
By querying the database and filtering on (higher-order) trace relationships between components, valuable insights into the effects of design choices can be generated. In this way, developers can proactively explore and test possible design alternatives.

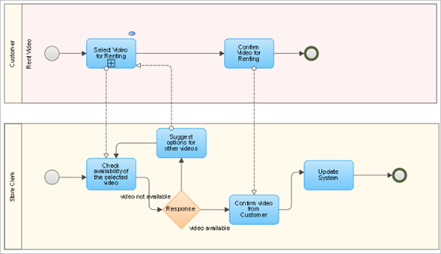

Connected System Diagrams
Why? One of the dominant reasons for complexity in modern product development is the increased level of interconnectivity in product functionalities. Critical interfaces need to be understood and well aligned between different development teams. Managing this complexity requires insights into the connectivity between design aspects, functionalities and components.
TopTeam allows connecting database records within technical diagrams and thereby enables powerful communication of concepts and interfaces. Users don’t have to navigate an abstract database but instead can interact with diagrams directly to explore relationships.
In conclusion
Data visualization in TopTeam isn’t just about aesthetics—it’s about making complex systems comprehensible and actionable. Whether you’re breaking down a system, tracing components, or mapping interconnections, these visual tools will help teams to work smarter and in the end deliver better products faster.
